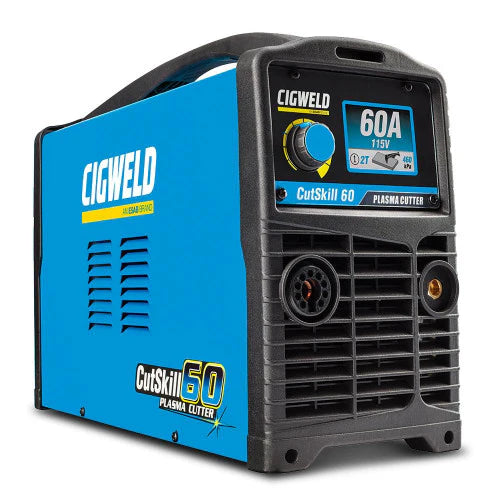

Cigweld 1-1601-60 CutSkill 60 Plasma Cutter System

CIGWELD has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma machines. CutSkill 60 machines from CIGWELD feature a user interface that not only incorporates the latest in colour LCD technology, but also simplifies the entire cutting set up process.

Features:
Fully Compliant to AS 60974.1-2006. Enclosure rated to IP23S.
2.8” Colour LCD Screen Allows for full interactive digital control
Air Compressor Recommended air compressor required: Cutskill 35 & 45 - 730kPa,12 CFM Cutskill 60 - 800kPa,12 CFM
CutSkill 60A Plasma Torch
Gouging Tip Gouging Tip 1.1mm

Specifications:
Power: 240V, 1Ph, PFC, 15A Minimum recommended circuit breaker is 2
Duty Cycle: 20% @ 60A**
Current range: 20-60 Amps
Input Air Required: 800kPa, 110LPM
Generator required: 15kVA
Mid Steel clean cut: 20mm
Mild steel severance: 28mm
Stainless clean cut: 14mm
Aluminium clean cut: 12mm
Dimensions (L x W x H): 437mm x 176mm x 324mm
Weight: 13.2kg
