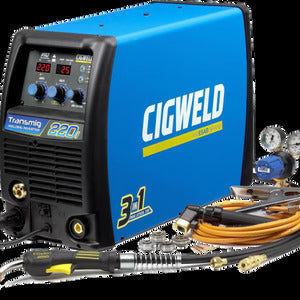

CIGWELD Transmig 220i

The CIGWELD TRANSMIG 220i is a self contained single phase multi process welding inverter that is capable of performing GMAW/FCAW (MIG), MMAW (Stick) and GTAW (Lift TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.

Includes:
Transmig 220i Inverter power source
Tweco Professional Fusion 250 MIG Torch, 3m
‰COMET Professional Argon Regulator/Flowmeter
‰Feed Rolls: 0.6/0.8mm V Groove (fitted), 0.9/1.2mm V Groove, 1.0/1.2mm U Groove; 0.8/0.9mm V Knurled; 1.2/1.6mm V Knurled
Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm
‰Twist Lock Electrode Holder with 4m Lead
‰Work Clamp with 4m Lead
‰Shielding Gas Hose Assembly
Operating manual (not pictured)
Features:
220A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder
Digital Amperage and Voltage Meters
Full multi process capabilities; MIG, Stick and Lift TIG
Integrated Wire Feed Unit ‰ Spools up to 15kg or 300mm
Standards compliant VRD
Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S - Designed for Indoor & Outdoor use.
Arc Control (Inductance) for adjusting intensity of the arc
‰Adjustable Burnback Control for controlling MIG wire stick out
Euro MIG Torch Connection
‰Accepts Mechafin style 2R feedrolls
Robust 50mmå_ Dinse twist lock connections

Specifications:
Processes: MIG (GMAW/FCAW), STICK (MMAW), TIG (GTAW)
Supply Voltage 240V +/- 15%, (15 Amp Plug)
Welding Current Range: 10 - 220A MIG (GMAW/FCAW), 10 - 200A STICK (MMAW), 10 - 200A TIG (GTAW)
Duty Cycle: MIG (GMAW/FCAW): 220A @ 20%, 25.0V (40°, 10mins) STICK (MMAW): 200A @ 25%, 28.0V (40°, 10mins) TIG (GTAW): 200A @ 25%, 18.0V (40°, 10mins)
Minimum Single Phase Generator Recommended Generator** 10.0 kVA (at 0.8 Power Factor) 8.0 kW (at 1.0 Power Factor)
Weight Power source: 26kg; Plant (packed): 34kg
Dimensions Power source: 435mm(H) x 266mm(W) x 617mm(D)
