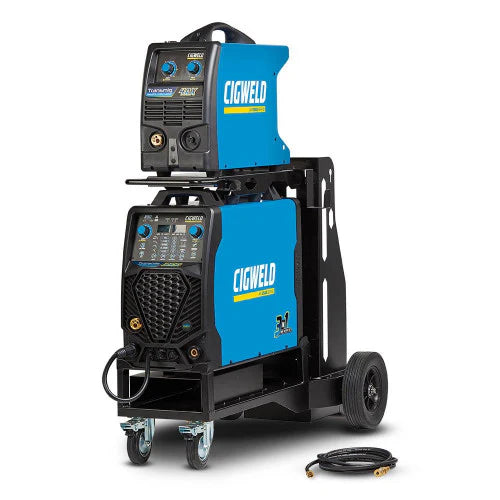

Cigweld W1003510 Transmig 355i MIG/STICK/TIG Compact & Remote Plants Welder Kit

Cigweld W1003511 Transmig 355i
The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, plate thickness and consumable diameter reduce your setup time and ensures you are always getting the best from your welds.

The Transmig 355i has an easy-to-use push-button design, convenient memory storage, and is loaded with advanced features to ensure you can always customise your welds.
And best of all you can operate it as a compact inverter or with a remote 4RX feeder

Features:

Input Supply: 415VAC +/- 15%, 3 Phase, 50/60Hz, 15A.
3 IN 1 Multi-Process A true multi-process machine offering outstanding welding results across MIG, Stick TIG.
Auto Set Process, Auto Set parameters for MIG.
Determined by material type, thickness & consumable diameter.
Current range for this Power Source is 30 to 355A (MIG Mode) of DC Welding Output.
Heat Trim, Customisable Heat Trim Function allows user to tweak voltage for optimal performance (in AUTO SET MIG only).
Push Button Interface Simple Push button display for easy navigation.
Save up to 15 of your favourite welds with Memory Settings.
Arc Control
Variable inductance for softer arc and less spatter or stronger arc and increased penetration.
Adjusts stick-out and prevents wire from burning back.
Easy Access Gas Purge button on front display enables user to purge shielding gas through torch.
Easy Access Gas Wire Inch button on front display enables user to feed wire without wasting shielding gas.
Standards compliant STICK mode only.
Recommended generator required: 14kVA at 0.8 Power Factor.
Specifications:

Number of Phases: Three Phase
Nominal Supply Voltage: 415 VAC 15%
Cooling: Fan Cooled
Welder Type: MIG, STICK, LIFT TIG, AutoSet MIG Inverter Power Source
Standards: AS 60974.1-2006 / IEC 60974-1
Nominal Supply Frequency: 50/60Hz
Open Circuit Voltage (VRD On) Stick Weld Mode: <35V
Effective Input Current (I1eff ): 15 Amps
Maximum Input Current (I1max): 20 Amps
Minimum Three Phase Generator (Recommended): 14 kVA (at 0.8 Power Factor)
Protection Class: IP23S
MIG (GMAW) Welding Output, 40oC, 10 min: 355A @ 60%, 31.8V
STICK (MMAW) Welding Output, 40oC, 10 min: 355A @ 60%, 34.2V
TIG (GTAW) Welding Output, 40oC, 10 min: 355A @ 60%, 24.2V
Dimensions L x W x H: 517mm x 287mm x 700mm
Weight: 45kg
Warranty:

3 Year Warranty Covered By Cigweld Australia
Cigweld W3000410 Transmig 4RX Wire Feeder
The Transmig 4RX Wirefeeder is designed for use with the Transmig 355i Multi Process Welder – a robust 4 Roll Feeder that can operate with 200mm and 300mm spools. Fitted with a single tension arm the drive system is simple to operate for easy changing of wire and feed rolls.

The Transmig 355i is supplied with a Tweco Fusion 400 AMPair-cooled MIG Torch that can be used with the 4RX Wire Feeder. The Fusion MIG Torch is designed with an ergonomic handle that feels light in the hand to reduce operator fatigue.

Specifications:

4RX Min/Max Wirespeed: 1.5/22 MPM
4RX Interconnection Plug: 10 Pin
4RX Interconnection Length: 8m
Dimensions L x W x H: 553mm x 238mm x 453mm
Weight: 21kg
