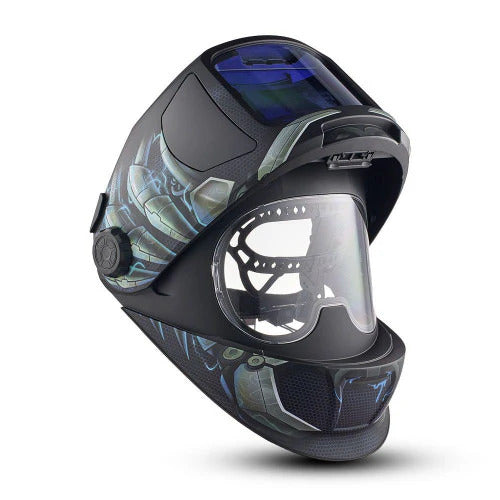

Cigweld WHAMXC190F Arcmaster XC90F Predator Auto-Darkening Welding Helmet

The ARCMASTER XF90F’s massive High-Impact Grinding window protects you and allows excellent vison when grinding. Ready to weld? A soft nod pivots the front lid down. The flip-front lid houses an ADF with one of the largest viewing areas in a flip-front welding helmet today and Shade-5 side-view windows for better peripheral vision, enhancing safety and awareness.

Includes:
ARCMASTER XC90F Welding Helmet
Front Cover Lens Clear - WHCL124F (Spare x 2)
Front Cover Lens Blue - WHCL124FB (Fitted)
Rear Cover Lens (Spare x 1)
Sweatband - WHSB04 (Fitted)
ARCMASTER XC Series Helmet Bag
Operating Manual

Features:
Quad-1, High-Definition optical viewing rating to the latest ISO 16321-2:V1 Standard (Old Standard EN379: 1/1/1/1) also approved to AS/NZS: 1338:1
High-impact rating for grinding to AS/NZS: 1337:1
5 Arc Sensors, excellent for all welding processes including TIG down to 2 Amps, including Pulse TIG
Variable shade ranges 4-8/9-14 in 0.5/half shade increments
Grinding shade on ADF = 3
Flip-front design with high impact rated grinding lens
Digital Sensitivity and Delay controls, fast reaction time
Easy and quick to change cover lenses
Magnification Frame (can be fitted with an optional CIGWELD magnification lens)
Suitable for Plasma Cutting and Oxy-Welding Operations
Fitted with a Bluelight outer lens - improves vision in low light areas, and reduces eye fatigue
Positive lock-up 5-point head harness mechanism

Specifications:
Viewing Area: 118mm x 83mm = 99mm²
Arc Sensors: 5
Approved to AS/NZS: AS/NZS 1337.1 & 1338.1
ISO 16321 Rating: V1 (Previously EN349: 1/1/1/1)
Shade Range: 4-8/9-14
Grinding Shade (ADF): 3
OptiShade Technology: User Adjustable +/- 2 Shades
Gradual Mode: Yes (Dark to Clear)
Ultra View: Yes
Switching Speed: 0.1ms
Memory Mode: Yes x 9
Harness Points: 5
Digital Controls: Yes
Impact Rating: High Impact
Battery: Solar Assist 2 x CR2032 (Replaceable Battery)
Weight: 0.780kgs
