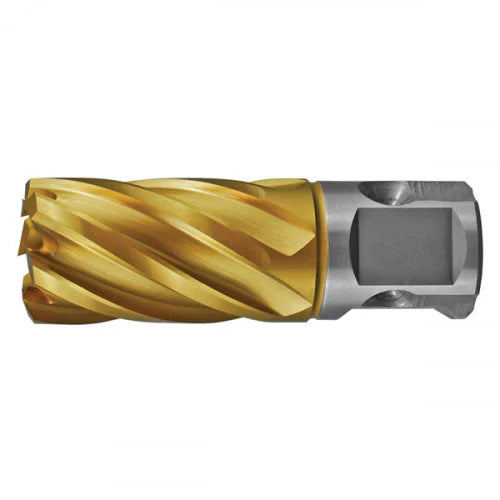

HOLEMAKER UNI SHANK GOLD SERIES CUTTER 22MM X 25MM
HOLEMAKER UNI SHANK GOLD SERIES CUTTER 22MM X 25MM
HOLEMAKER UNI SHANK GOLD SERIES CUTTER 22MM X 25MM
TITANIUM NITRIDE COATING
The Titanium Nitride coating significantly increases the tool life by providing the following benefits:
Increased surface hardness to 85HRC
Ceramic surface, reducing friction by up to 30%
Especially resistant to cold welding
Suitable for cutting a wide range of materials
M2AL HIGH SPEED STEEL MATERIAL
M2AL High Speed Steel is a high alloy material with a hardness of up to 67.5 HRC, designed for increased endurance of the cutting edge and tool life.
STEP HARDENED PROCESS
This state of the art manufacturing process produces cutters with extremely hard tooth tips for increased cutter performance, while maintaining a softer body which is less susceptible to breakage than standard high speed steel cutters.
MULTI-CUT GEOMETRY
Provides smooth and fast cutting, with decreased chatter. This also increases the cutters ability to remove swarf away from the cut, and helps to enhance centering.
FULLY GROUND WITH INTERNAL RELIEF
This feature allows Holemaker cutters to produce reamed quality, burr-free holes, and also helps to reduce torque and horsepower requirements.
UNIVERSAL SHANK
19.05mm (¾”) Universal Shank with 2 flat sections to suit most magnetic basedrilling machines.
Diameter: 22mm
Depth Of Cut: 25mm
Pilot Pin Diameter: 6.34mm
Shank Diameter: 3/4"
