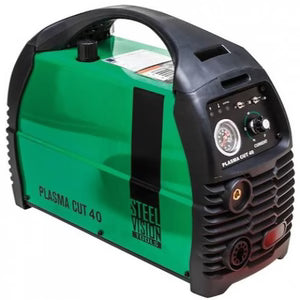

Steel Vision Plasma 40A with Built-In Compressor

The Plasma Cut 40 is the latest design & technology in inverter welding equipment. The Plasma Cut 40 eliminates the need for external air supply with its own built in oil less compressor. This unit is extremely easy to operate & gives trouble free cutting of most conductive metals such as steel,stainless steel,aluminium, copper & even cast iron.

The Plasma Cut 40 makes onsite work for its operator easy as the need for an additional compressor is no longer required. This unit is ideal for sheet metal contractors & fabricators,fencing & roofing applications, automotive & farm maintenance & also plumbing applications. This light weight yet powerful unit gives the operator a maximum 12mm cutting capacity with full variable amperage control. The standoff guide on the 45amp torch and the automatic post flow cooling gives extra longevity for the torch consumables making the operators cost kept to the minimum

SPECIFICATION

Input Power Voltage: 240V 1±15%
Frequency : 50 Hz
Rated Input Capacity: 4 KVA
Rated Output: 20-40 AMP
Rated Output Voltage: 96V
Rated Duty Cycle: 15% @40A
Air Flow Pressure: 36psi
Cutting Thickness: Clean Cut 10mm, Severance Cut 12 mm (Max)
Protective Grade of Housing: IP21S
Plasma Arc Starting: Piolt L/F
Packing Size: 65 cm x 32 cm x 53 cm
Weight: 24 Kg
