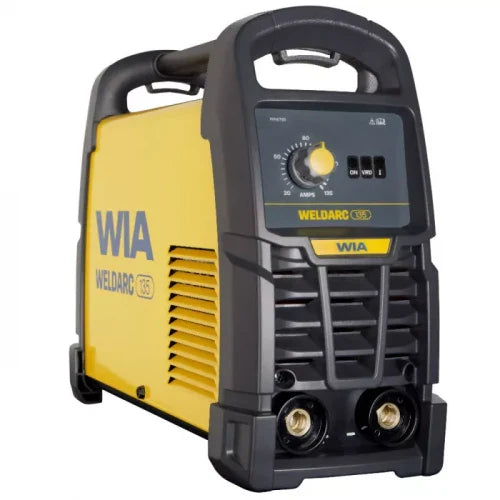

Weldarc 135 Stick Welder Package

Features:
135 A single phase Stick welder
135 A at 25.4 V 20% Duty Cycle
Portable – Only 4kg
Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
Arc Force – Provides a more stable arc and prevents electrode sticking
Hot Start – For better, easier arc starting
VRD (Voltage Reduction Device)
IP21S rated
Generator compatible – 7 kVa
Weldable materials - steel, stainless steel and cast iron
Suitable aplications - repair and maintence, farming and DIY projects

Specifications:
Primary Voltage - 240 VAC-50/60Hz
Rated Primary Current - 9.9 Amps
Max Primary Current - 22.2 Amps
Recommended Generator Power - 7 kVa
Supply Plug - 10 Amp
IP Rating - IP21S
Weight - 4kg
Warranty - 3 Years
Standards Compliance - AS60974.1 & AS1674.2 (VRD)

Stick Specifications:
Current Range -
20A/20.8V
135A/25.4V
Rated Output @ 40°C (10min) -
135A/25.4V @ 20%
78A/23.1V @ 60%
60A/22.4V @ 100%
Electrode Size Range - 2.0 - 3.2mm
Material Thickness Range - Welds up to 6mm steel plate, single pass

Package Includes:
Heavy duty work clamp (2m)
Industrial twist lock electrode holder (3m)
Padded shoulder strap
