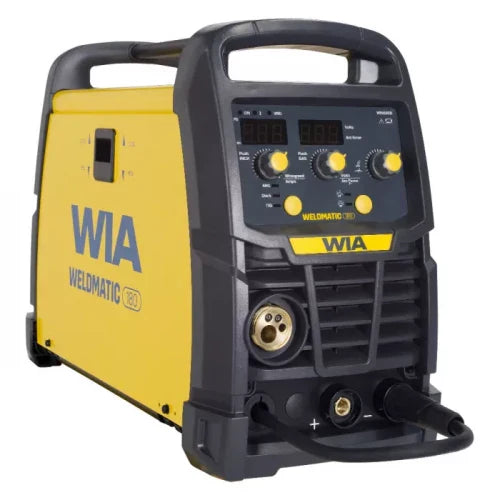

Weldmatic 180 MIG / Stick / TIG Welder Package

Equipped with the latest technology, the 180 offers digital meters making adjusting parameters easier, plus it’s IP23S rated, providing extra protection in harsh environments. Built with quality components and manufactured with 3 years warranty, compared to others in its class you’ll get more than just a quality welder at a great price.

Package Includes:

Euro Gun Cable (3m)
Work Lead (3m)
Gas Regulator
Drive Rollers 0.6/0.8mm V Groove; 0.9/1.2mm Knurled (Gasless)
Tips (0.6/0.8/0.9mm)
Industrial Twist Lock Electrode Holder (3m)
Austfil T-11 Gasless Sample Wire (0.9mm)
ES6 Steel Sample Wire (0.8mm)

Features:
Suitable Applications - Light Fabrication, Repair and Maintenance, Automotive, Farming, Building and Construction
Weldable Materials - Steel, Aluminium and Stainless Steel
180 A single phase MIG, Stick & TIG welder
180 A at 23 V 10% Duty Cycle
Portable – Only 11kg
Integrated wire feeder – Makes it compact and lightweight
Digital Meters – Easy to read and easy to adjust parameters
Built-In Thermal Protection – Prevents the machine from operating beyond its safe thermal zone
Arc Force – Provides a more stable arc and prevents electrode sticking
Hot Start – For better, easier arc starting
Burn Back – Controls how far the wire burns back to the tip on completion of the welding operation
Suitable wires - Gas-shielded and gasless flux-cored wires
Spool capacity - Takes 1kg and 5kg spools
VRD (Voltage Reduction Device)
IP23S rated – Provides extra protection in harsh environments
Generator Compatible – 10 kVa

Specifications:

Primary Voltage - 240 VAC-50/60Hz
Rated Primary Current - 10 Amps
Max Primary Current - 31 Amps
Recommended Generator Power - 10kVa
Supply Plug - 10 Amp
IP Rating - IP23S
Weight - 11kg
Warranty - 3 Years
Standards Compliance - AS60974.1 & AS1674.2 (VRD)
MIG Specifications:

Output Range - 30A/15.5V-180A/23V
Rated Output @ 40°C (10min) -
180A/23V @ 10%
73A/17.6V @ 60%
57A/16.9V @ 100%
Wire Size Range - 0.6/0.8/0.9mm
Material Thickness Range - Welds up to 6mm steel plate, single pass
Stick Specifications:

Current Range - 20A/20.8V-150A/26V
Rated Output @ 40°C (10min) -
150A/26V @ 10%
61A/22.4V @ 60%
47A/21.9V @ 100%
TIG Specifications:

Current Range - 15A/10.6V-180A/17.2V
Rated Output @ 40°C (10min) -
180A/17.2V @ 10%
73A/12.9V @ 60%
57A/12.3V @ 100%
