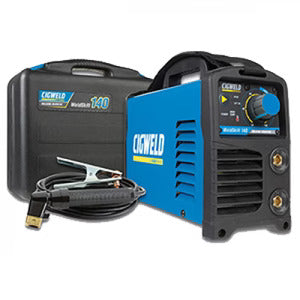

WeldSkill 140 Single Phase Welding Inverter

The WeldSkill 140 is a single phase welding inverter with a user-friendly control panel,practical push button operation for mode selection, clearly visible LED indicators and sturdy large control knob.

Features:
Twist lock electrode holder.
3 Year Warranty.
Rugged case with carry handle and carry strap.
4m long electrode holder and work leads.
Push button weld mode selector with LED indicators.
Specifications:
Power Source Dimensions: H200mm x W120mm x D315mm
Power Source Mass: 4.7 KG
Fan Cooled
Welder Type: Stick and Lift TIG Multi Process Inverter Power Source
Australian Standard AS 60974.1-2006 / IEC 60974-1
Single Phase
Nominal Supply Voltage 240V AC å± 10%
Nominal Supply Frequency 50/60 Hz
Welding Current Range 10 - 140 A
Nominal DC Open Circuit Voltage 80 V
Factory Fitted Supply Plug Rating 10 Amps
Effective Input Current (I1eff ) 10 Amps
Maximum Input Current (I1max) 26.3 Amps
Minimum Single Phase Generator Recommendation: 6.0 kW (7.5 kVA @ 0.8 PF)
STICK (MMAW) Welding Output, 40å¼C, 10 min. 140 Amps @ 15% Duty Cycle
TIG (GTAW) Welding Output, 40å¼C, 10 min. 140 Amps @ 35% Duty Cycle
Protection Class IP21S
